Cast to Polygon2D object

as_polygon2d() casts to a Polygon2D object.

Usage

as_polygon2d(x, ...)

# S3 method for class 'Coord2D'
as_polygon2d(x, convex = NA, ...)

# S3 method for class 'Polygon2D'
as_polygon2d(x, convex = NA, ...)

# S3 method for class 'numeric'
as_polygon2d(x, y = 0, convex = NA, ...)

# S3 method for class 'Ellipse2D'
as_polygon2d(x, n = 60L, type = c("inner", "outer"), ...)

Arguments

x

Object to cast. Either a Coord2D object of vertices or a numeric vector of x-coordinates.

...

Ignored; only included for S3 method consistency.

convex

NA to auto-detect (default), TRUE to assert convex, FALSE to mark as concave.

y

Numeric vector of y-coordinates (used when x is numeric).

n

Number of vertices in the approximating polygon (default 60L).

type

"inner" (default) for an inscribed polygon whose vertices lie on the ellipse, or "outer" for a circumscribed polygon whose edges are tangent to the ellipse. Both polygons are convex.

Value

A Polygon2D object.

See also

isotoxal_2ngon_polygon2d() and regular_ngon_polygon2d() to directly construct common polygon shapes.

Examples

vertices <- as_coord2d(x = c(0, 1, 1, 0), y = c(0, 0, 1, 1))
p <- as_polygon2d(vertices)
p$is_convex
#> [1] TRUE
print(p)
#> <Polygon2D[4 vertices, convex = TRUE]>
#>      x y w
#> [1,] 0 0 1
#> [2,] 1 0 1
#> [3,] 1 1 1
#> [4,] 0 1 1

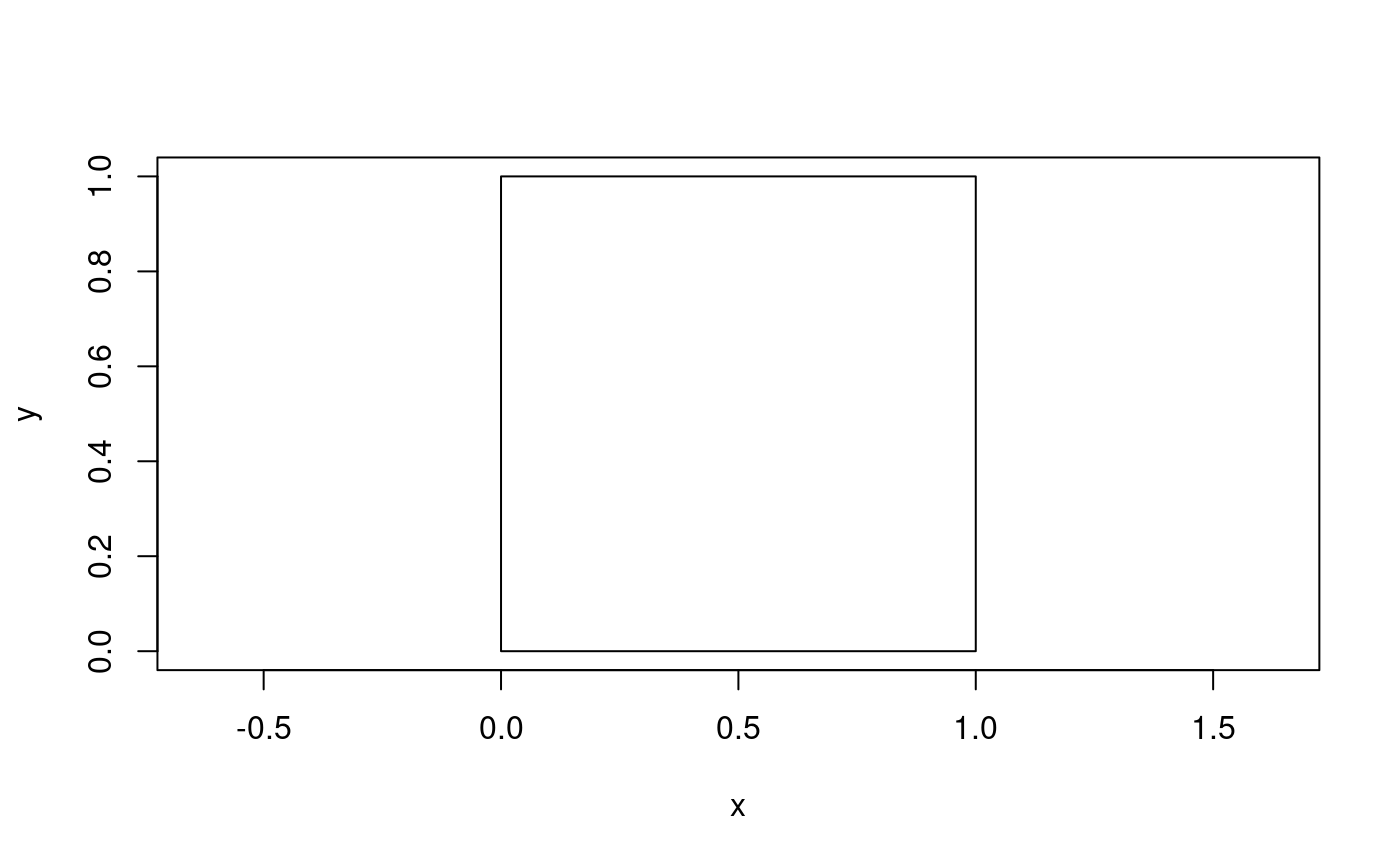

plot(p)
