Generate checkers boards and pieces

Source: R/checker_boards.r
checker_pieces.Rd

checker_board() returns a square checkers board of desired size and type. checker_bits() returns checkers discs.

Usage

checker_board(
  nrows = 8L,
  ncols = nrows,
  x0 = 1,
  y0 = 1,
  ...,
  side = "face",
  piece_side = paste0("board_", side),
  suit = "green",
  angle = 0,
  cell_width = getOption("ppdf.checker_cell_width", 1)
)

checker_bits(
  ...,
  side = "back",
  piece_side = paste0("bit_", side),
  suit = 1:6,
  x = as.double(1:6),
  y = 1,
  angle = 0,
  cell_width = getOption("ppdf.checker_cell_width", 1),
  length.out = NA_integer_
)

Arguments

nrows

Number of rows in game board

ncols

Number of columns in game board

x0

X coordinate for the center of the first cell

y0

Y coordinate for the center of the first cell

...

Should be left empty.

side

Either "face" or "back"

piece_side

If "board_face" a checkered board (as in American Checkers). If "board_back" a lined board (as in Turkish Checkers).

suit

Suit value (color) of board/checkers. 1L is "red", 2L is "black", 3L is "green", 4L is "blue", 5L is "yellow", and 6L is "white". Will be coerced by piece_suit().

angle

Angle of board in degrees. Italian Checkers rotates its board 90 degrees compared to other checkers variants.

cell_width

Width of board cell. piecepackr::game_systems() supports 1 or 2. If NULL then don't set it yet.

x, y

Cartesian coordinates (numeric vectors)

length.out

The number of pieces. Not needed if all the arguments are the same length (or of length one) and this length is the same as the number of desired pieces.

Value

A tibble::tibble() data frame with the following columns:

  • "piece_side"

  • "suit"

  • "rank"

  • "cfg" (optional, defaults to "piecepack")

  • "x"

  • "y"

  • "angle" (optional, defaults to 0).

This data frame is compatible with piecepackr::render_piece() and likely ppcli::cat_piece().

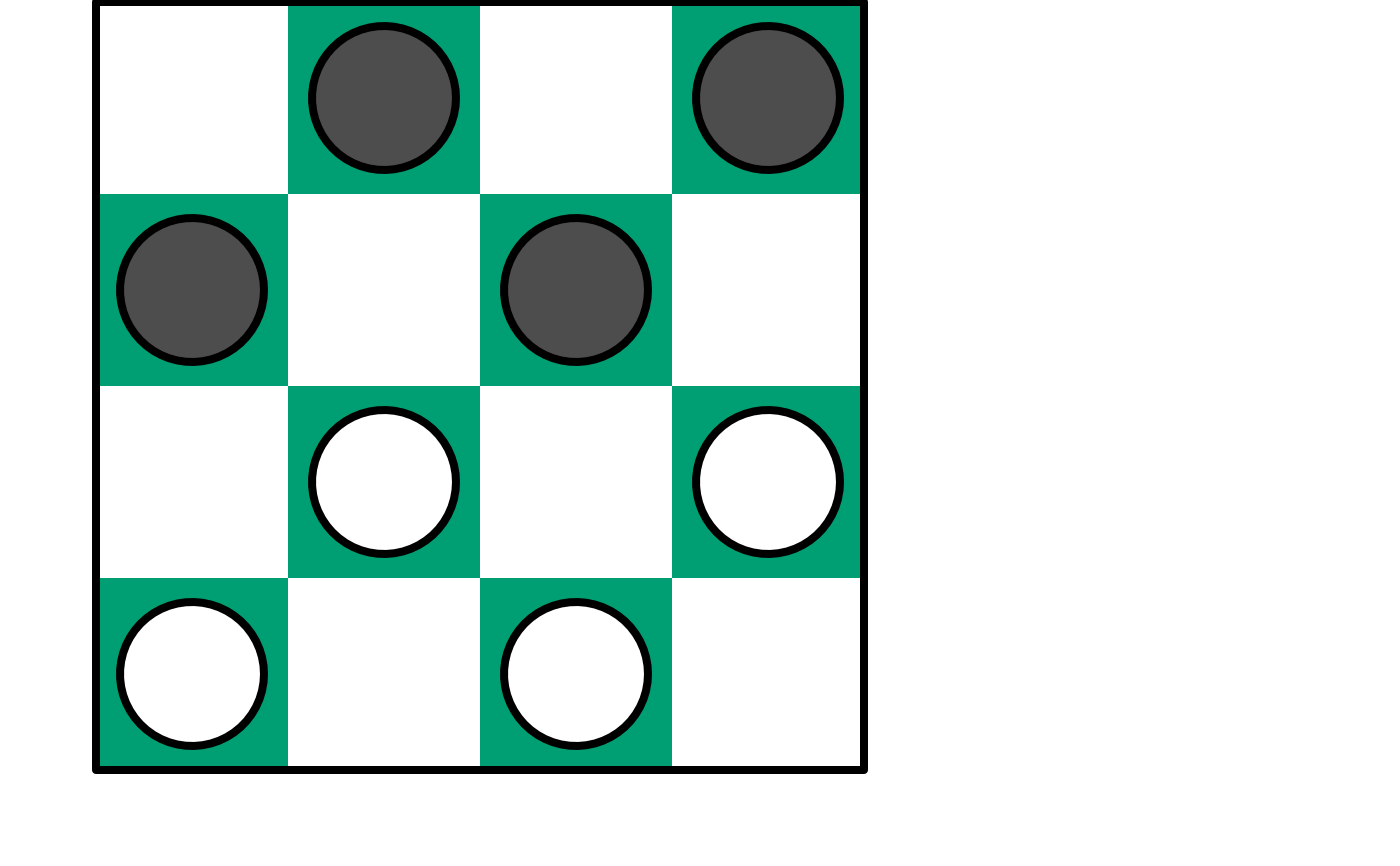

Examples

dfb <- checker_board(nrows = 4L, ncol = 4L)
df1 <- checker_bits(suit = "white", x = c(1, 3), y = 1)
df2 <- checker_bits(suit = "white", x = c(2, 4), y = 2)
df3 <- checker_bits(suit = "black", x = c(1, 3), y = 3)
df4 <- checker_bits(suit = "black", x = c(2, 4), y = 4)
df <- rbind(dfb, df1, df2, df3, df4)
if (require("piecepackr", quietly = TRUE) &&
    packageVersion("piecepackr") >= "1.15.0-1") {
  grid::grid.newpage()
  envir = game_systems()
  pmap_piece(df, envir = envir, default.units = "in")
}
