Dingbats PnP

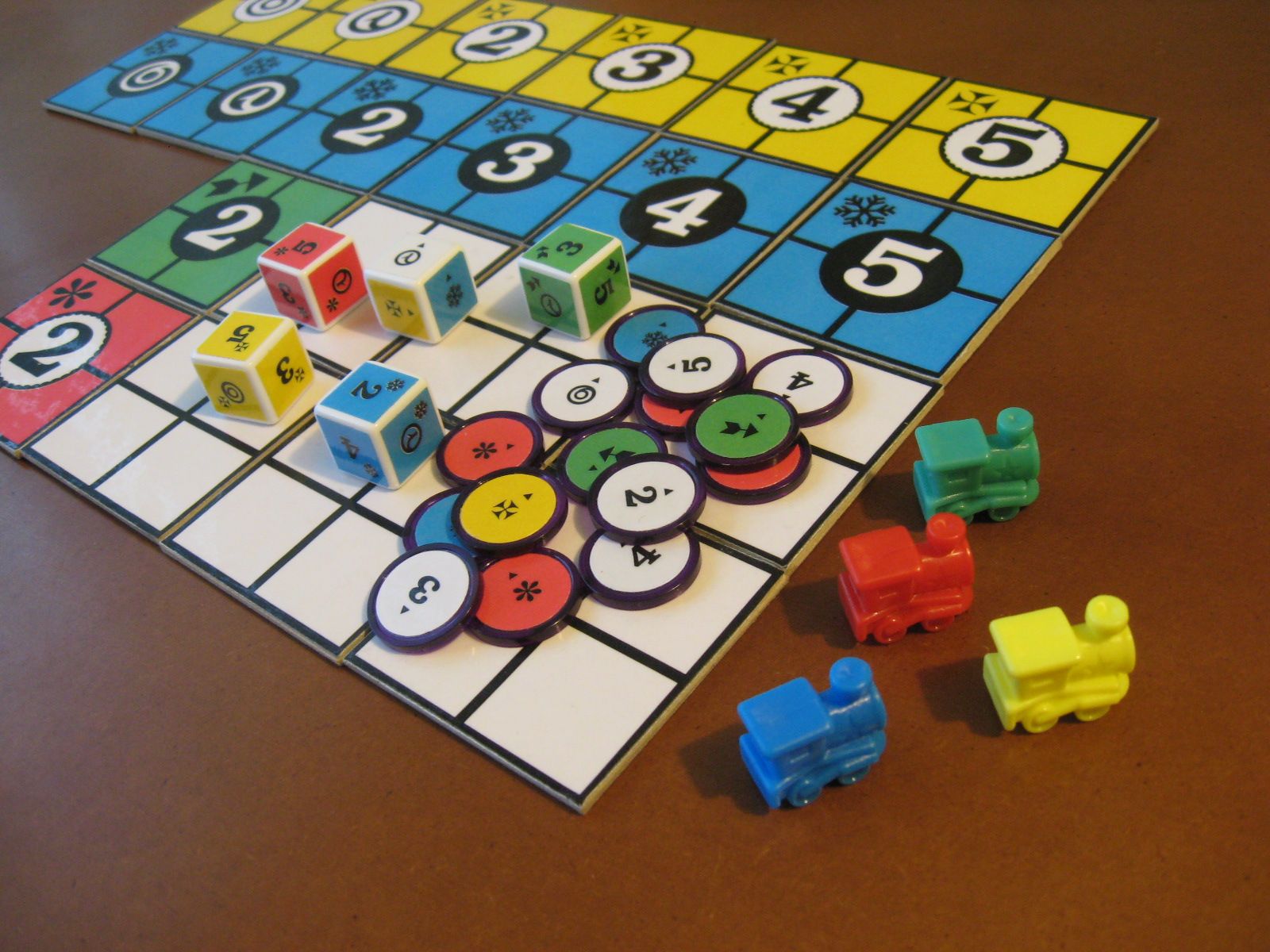

In 2013 Daniel Ajoy released his PiecePack Design Variation under a CC BY 3.0 license. Besides using Dingbat suit symbols instead of the standard piecepack suits Daniel Ajoy's "Dingbats" piecepack had the following features:

  1. Uses a yellow suit instead of a black suit
  2. The tile faces of two suits are 'white' and two are 'black'
  3. Fronts of the tiles are divided into four sectors
  4. The null and ace rank have distinctive symbols

For more info about the design please read Daniel Ajoy's description and design notes at https://boardgamegeek.com/filepage/91234/piecepack-design-variation.

It is possible to emulate Ajoy's Dingbats piecepack in piecepackr but in order to emulate his tile faces and null/ace rank symbols we'll need to write and use a custom grob function in order to add some extra circles/stars on the tile faces and add an extra circle to his null/ace rank symbols.

Note

The custom grob function in this article uses the function pp_shape() which was introduced in piecepackr v1.5.1

library("grid")
library("piecepackr")
ajoyDingbatsGrob <- function(piece_side, suit, rank, cfg=pp_cfg()) {
    cfg <- as_pp_cfg(cfg)
    opt <- cfg$get_piece_opt(piece_side, suit, rank)
    shape <- pp_shape(opt$shape, opt$shape_t, opt$shape_r, opt$back)

    # Background
    background_grob <- shape$shape(gp=gpar(col=NA, fill=opt$background_color))

    # Gridlines, Mat
    gl_grob <- shape$gridlines(gp = gpar(col = opt$gridline_color, lex = opt$gridline_lex))
    mat_grob <- shape$mat(opt$mat_width, gp = gpar(fill = opt$mat_color))

    if (piece_side == "tile_face") {
        outside_circle_grob <- circleGrob(r=0.25, gp=gpar(col=NA, fill=opt$ps_color))
        col2 <- ifelse(opt$ps_color == "white", "black", "white")
        gp2 <- gpar(col=NA, fill=col2)
        if (rank < 3) {
            inner_circle_grob <- circleGrob(r=0.23, gp=gp2)
        } else {
            inner_circle_grob <- grobTree(pp_shape("concave24", 0, 0.45)$shape(gp=gp2),
                                          vp=viewport(width=0.47, height=0.47))
        }
        circle_grob <- grobTree(outside_circle_grob, inner_circle_grob)
    } else {
        circle_grob <- nullGrob()
    }

    # Primary symbol
    gp_ps <- gpar(col=opt$ps_color, fontsize=opt$ps_fontsize,
                  fontfamily=opt$ps_fontfamily, fontface=opt$ps_fontface)
    ps_grob <- textGrob(opt$ps_text, x=opt$ps_x, y=opt$ps_y, gp=gp_ps)
    if (!is.null(opt$ps_text) && opt$ps_text %in% c("6", "1", "\u0285")) { # "\u03b9", "\u0196", "\u0666", "\u158d"
        gp_c <- gpar(col=opt$ps_color, fontsize=0.95*opt$ps_fontsize,
                      fontfamily=opt$ps_fontfamily, fontface=opt$ps_fontface)
        c_grob <- textGrob("\u25ef", x=opt$ps_x, y=opt$ps_y, gp=gp_c)
        ps_grob <- grobTree(c_grob, ps_grob)
    }

    # Directional mark
    gp_dm <- gpar(col=opt$dm_color, fontsize=opt$dm_fontsize,
                  fontfamily=opt$dm_fontfamily, fontface=opt$ps_fontface)
    dm_grob <- textGrob(opt$dm_text, x=opt$dm_x, y=opt$dm_y, gp=gp_dm)

    # Border
    border_grob <- shape$shape(gp=gpar(col=opt$border_color, fill=NA, lex=opt$border_lex))
    gl <- gList(background_grob, gl_grob, mat_grob, circle_grob,
                ps_grob, dm_grob, border_grob)

    gTree(children=gl, name=piece_side)
}
colors <- list(background_color="#00BFFF,#CD5C5C,#FFD700,#3CB371,white",
               suit_color="black",
               ps_color.s1.tile_face="white", ps_color.s4.tile_face="white",
               gridline_color.tile_face="black",
               mat_width.tile=0.05, mat_color.tile="black")
suits <- list(suit_text="\u2744,\u273d,\u2720,\u27b9,",
              suit_cex="0.9,0.9,0.8,1.0,1")
ranks <- list(rank_text="6,\u0285,2,3,4,5", rank_cex="0.6,0.6,0.8,0.8,0.8,0.8")
misc <- list(dm_text.coin="\u25b2", ps_cex.coin=0.9, fontfamily="Dejavu Sans",
             grob_fn=ajoyDingbatsGrob)
dingbats1 <- c(colors, suits, ranks, misc)
dejavu_credit <- c("\u25cf This piecepack uses characters from the font Dejavu Sans.",
                    "\thttps://dejavu-fonts.github.io/",
                    "\thttps://dejavu-fonts.github.io/License.html")
ajoy_credit <- c('\u25cf This piecepack emulates Daniel Ajoy\'s "Piecepack Design Variation". CC BY 3.0.',
                 "\thttps://boardgamegeek.com/filepage/91234/piecepack-design-variation",
                 "\thttps://boardgamegeek.com/user/DanielAjoy",
                 "\thttp://creativecommons.org/licenses/by/3.0")
description <- c('This piecepack emulates Daniel Ajoy\'s "Piecepack Design Variation" aka "Dingbats piecepack" which has the following features:',
                 "\u25cf Uses a yellow suit instead of a black suit",
                 "\u25cf The tile faces of two suits are 'white' and two are 'black'",
                 "\u25cf Fronts of the tiles are divided into four sectors",
                 "\u25cf The null and ace rank have distinctive symbols",
                 "\u25cf For more info see Daniel Ajoy's description and design notes at",
                "\thttps://boardgamegeek.com/filepage/91234/piecepack-design-variation")
dingbats1$description <- description
dingbats1$credit <- c(dejavu_credit, ajoy_credit)
dingbats1$title <- "Dingbats piecepack (Dingbat suits)"
dingbats1 <- pp_cfg(dingbats1)
grid.piece("preview_layout", cfg=dingbats1)
A preview of a 'Dingbats' piecepack

A preview of a 'Dingbats' piecepack

Ajoy's PiecePack Design Variation PnP file also included a deck using the French suits. Modifying the above "Dingbats piecepack" configuration list in order to build this deck is straightforward.

dingbats2 <- as.list(dingbats1)
dingbats2$background_color="#FF5F50,white,#8B795E,#999999,white"
dingbats2$suit_text="\u2666,\u2665,\u2663,\u2660,"
dingbats2$suit_cex <- NULL
dingbats2$suit_color="darkred,darkred,black,black,black"
dingbats2$dm_color="black"
dingbats2$dm_color.tile_face=dingbats2$suit_color
dingbats2$dm_color.die_face=dingbats2$suit_color
dingbats2$ps_color.die_face="black"
dingbats2$dm_color.matchstick_face=dingbats2$suit_color
dingbats2$ps_color.matchstick_face="black"
dingbats2$ps_color.pyramid_left="black"
dingbats2$ps_color.pyramid_right="black"
dingbats2$ps_color.s1.tile_face="black"
dingbats2$ps_color.s2.tile_face="black"
dingbats2$ps_color.s3.tile_face="white"
dingbats2$title <- "Dingbats piecepack (French suits)"
dingbats2 <- pp_cfg(dingbats2)
grid.piece("preview_layout", cfg=dingbats2)
A 'Dingbats' style piecepack with French suits

A 'Dingbats' style piecepack with French suits
