Plot an object of class "dee"

plot() an object of class "dee" using omsvg::SVG(), omsvg::svg_path(), and nanosvgr::nsvg_read().

Usage

# S3 method for class 'dee'
plot(
  x,
  ...,
  height = getOption("dee.height"),
  width = getOption("dee.width"),
  background_color = getOption("dee.background_color", "none"),
  stroke = getOption("dee.stroke"),
  stroke_width = getOption("dee.stroke_width"),
  fill = getOption("dee.fill"),
  attrs = getOption("dee.attrs")
)

Arguments

x

An object of class "dee".

...

Passed to omsvg::svg_path().

height, width

svg width and height.

background_color

Background color.

stroke, stroke_width, fill, attrs

Passed to omsvg::svg_path().

Value

invisible(NULL)

Details

This function requires the package nanosvgr which (as of May 2026) is not available on CRAN. You can install it with remotes::install_github('coolbutuseless/nanosvgr') or utils::install.packages('nanosvgr', repos = c('https://trevorld.r-universe.dev', 'https://cloud.r-project.org')).

Examples

d <- M(10, 30) +
     A(20, 20, 0, 0, 1, 50, 30) +
     A(20, 20, 0, 0, 1, 90, 30) +
     Q(90, 60, 50, 90) +
     Q(10, 60, 10, 30) +
     Z()
if (requireNamespace("omsvg", quietly = TRUE) &&
    requireNamespace("nanosvgr", quietly = TRUE)) {

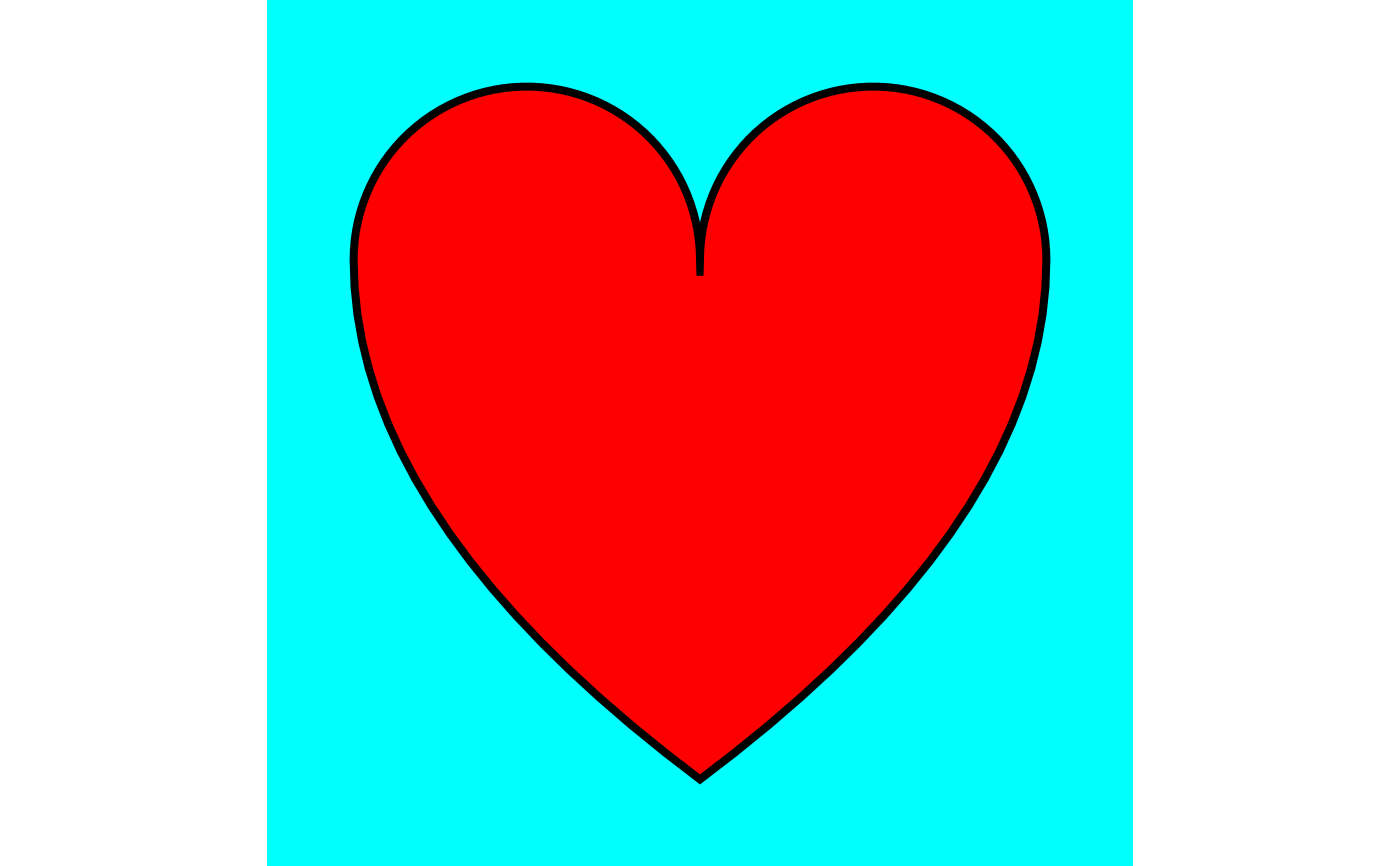

  plot(d, height = 100, width = 100, background_color = "cyan",
       fill = "red", stroke = "black", stroke_width = 4)
}
