Draw board game pieces with grid

grid.piece() draws board game pieces onto the graphics device. pieceGrob() is its grid “grob” counterpart.

Usage

pieceGrob(
  piece_side = "tile_back",
  suit = NA,
  rank = NA,
  cfg = getOption("piecepackr.cfg", pp_cfg()),
  x = unit(0.5, "npc"),
  y = unit(0.5, "npc"),
  z = NA,
  angle = 0,
  ...,
  width = NA,
  height = NA,
  depth = NA,
  op_scale = getOption("piecepackr.op_scale", 0),
  op_angle = getOption("piecepackr.op_angle", 45),
  default.units = getOption("piecepackr.default.units", "npc"),
  envir = getOption("piecepackr.envir"),
  name = NULL,
  gp = NULL,
  vp = NULL,
  scale = 1,
  alpha = 1,
  type = "normal",
  bleed = FALSE
)

grid.piece(
  piece_side = "tile_back",
  suit = NA,
  rank = NA,
  cfg = getOption("piecepackr.cfg", pp_cfg()),
  x = unit(0.5, "npc"),
  y = unit(0.5, "npc"),
  z = NA,
  angle = 0,
  ...,
  width = NA,
  height = NA,
  depth = NA,
  op_scale = getOption("piecepackr.op_scale", 0),
  op_angle = getOption("piecepackr.op_angle", 45),
  default.units = getOption("piecepackr.default.units", "npc"),
  envir = getOption("piecepackr.envir"),
  name = NULL,
  gp = NULL,
  draw = TRUE,
  vp = NULL,
  scale = 1,
  alpha = 1,
  type = "normal",
  bleed = FALSE
)

Arguments

piece_side

A string with piece and side separated by a underscore e.g. "coin_face"

suit

Number of suit (starting from 1).

rank

Number of rank (starting from 1)

cfg

Piecepack configuration list or pp_cfg object, a list of pp_cfg objects, or a character vector referring to names in envir or a character vector referring to object names that can be retrieved by base::dynGet().

x

Where to place piece on x axis of viewport

y

Where to place piece on y axis of viewport

z

z-coordinate of the piece. Has no effect if op_scale is 0.

angle

Angle (on xy plane) to draw piece at

...

Ignored.

width

Width of piece

height

Height of piece

depth

Depth (thickness) of piece. Has no effect if op_scale is 0.

op_scale

How much to scale the depth of the piece in the oblique projection (viewed from the top of the board). 0 (the default) leads to an “orthographic” projection, 0.5 is the most common scale used in the “cabinet” projection, and 1.0 is the scale used in the “cavalier” projection.

op_angle

What is the angle of the oblique projection? Has no effect if op_scale is 0.

default.units

A string indicating the default units to use if 'x', 'y', 'width', and/or 'height' are only given as numeric vectors.

envir

Environment (or named list) containing configuration list(s).

name

A character identifier (for grid)

gp

An object of class “gpar”.

vp

A grid viewport object (or NULL).

scale

Multiplicative scaling factor to apply to width, height, and depth.

alpha

Alpha channel for transparency.

type

Type of grid grob to use. Either "normal" (default), "picture", "raster", or "transformation". "picture" exports to (temporary) svg and re-imports as a grImport2::pictureGrob(). "raster" exports to (temporary) png and re-imports as a grid::rasterGrob(). "transformation" uses the affine transformation feature only supported in R 4.2+ within select graphic devices. The latter three can be useful if drawing pieces really big or small and don't want to mess with re-configuring fontsizes and linewidths.

bleed

If FALSE do not add a “bleed” zone around the piece, otherwise add a “bleed” zone around the piece:

If bleed is TRUE we will add 1/8 inch bleeds
If bleed is a grid::unit() we will use it as bleed size
If bleed is numeric we will convert to grid::unit() via grid::unit(bleed, default.units)

A non-FALSE bleed is incompatible with op_scale > 0 (drawing in an “oblique projection”).

draw

A logical value indicating whether graphics output should be produced.

Value

A grid grob object. If draw is TRUE then as a side effect grid.piece() will also draw it to the graphics device.

Examples

  if (requireNamespace("grid", quietly = TRUE) && piecepackr:::device_supports_unicode()) {
    opt <- options(piecepackr.at.inform = FALSE)

    draw_pp_diagram <- function(cfg=pp_cfg(), op_scale=0) {
        g.p <- function(...) {
            grid.piece(..., op_scale=op_scale, cfg=cfg, default.units="in")
        }
        g.p("tile_back", x=0.5+c(3,1,3,1), y=0.5+c(3,3,1,1))
        g.p("tile_back", x=0.5+3, y=0.5+1, z=1/4+1/8)
        g.p("tile_back", x=0.5+3, y=0.5+1, z=2/4+1/8)
        g.p("die_face", suit=3, rank=5, x=1, y=1, z=1/4+1/4)
        g.p("pawn_face", x=1, y=4, z=1/4+1/2, angle=90)
        g.p("coin_back", x=3, y=4, z=1/4+1/16, angle=180)
        g.p("coin_back", suit=4, x=3, y=4, z=1/4+1/8+1/16, angle=180)
        g.p("coin_back", suit=2, x=3, y=1, z=3/4+1/8, angle=90)
    }

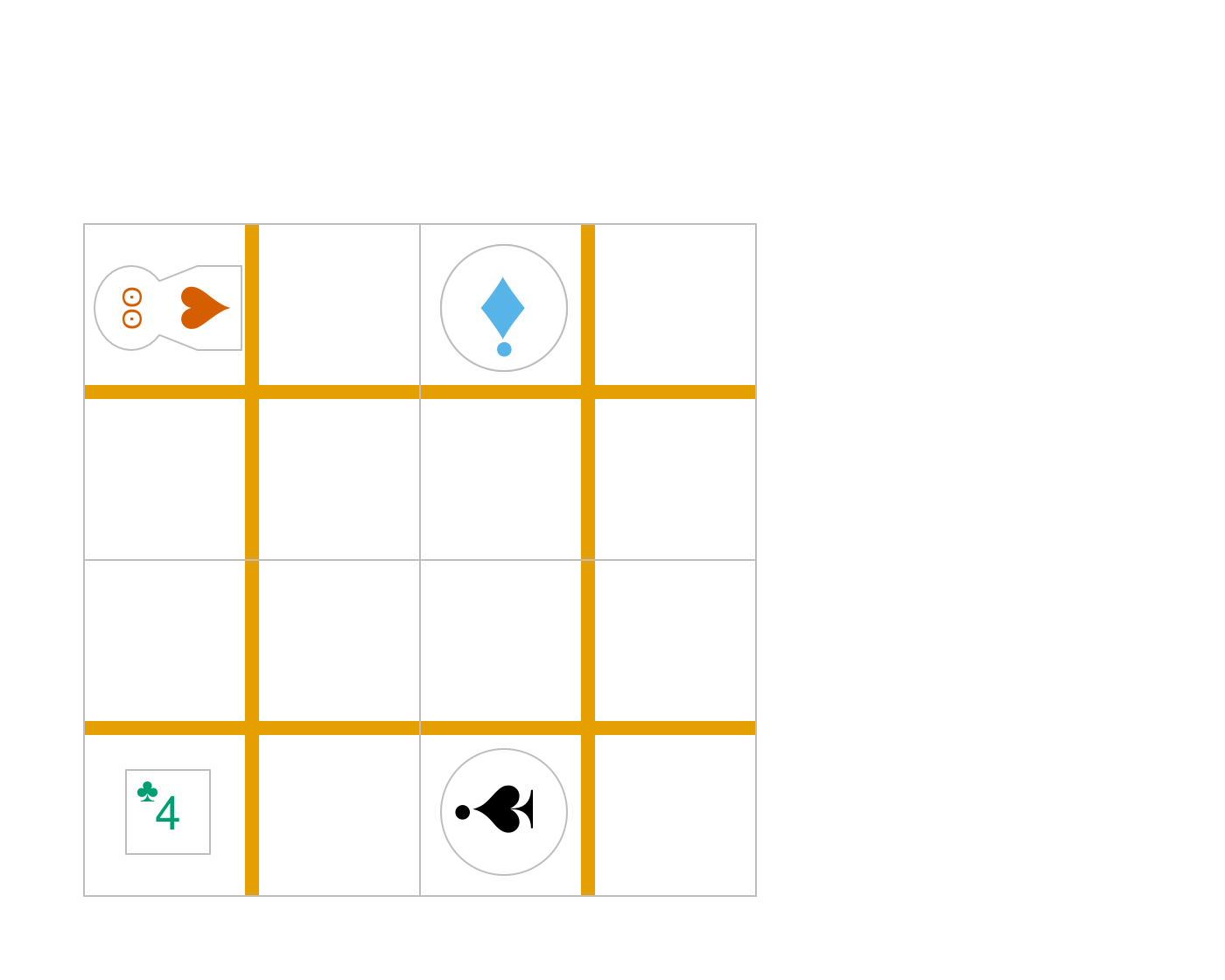

    # default piecepack, orthogonal projection
    draw_pp_diagram(cfg=pp_cfg())

    options(opt) # Reset options
  }

  if (requireNamespace("grid", quietly = TRUE) && piecepackr:::device_supports_unicode()) {

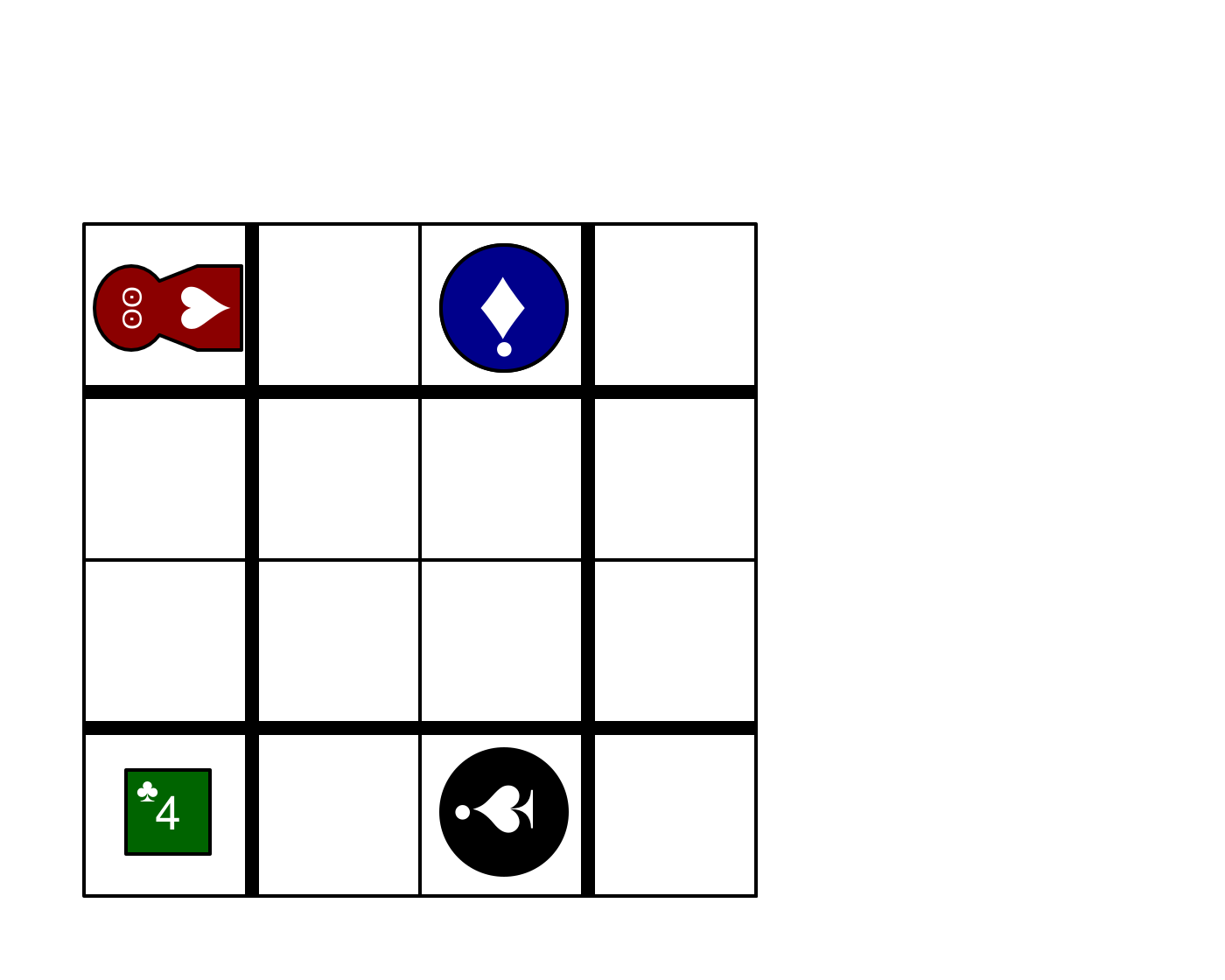

    # custom configuration, orthogonal projection
    grid::grid.newpage()
    dark_colorscheme <- list(suit_color="darkred,black,darkgreen,darkblue,black",
                         invert_colors.suited=TRUE, border_color="black", border_lex=2)
    traditional_ranks <- list(use_suit_as_ace=TRUE, rank_text=",a,2,3,4,5")
    cfg <- c(dark_colorscheme, traditional_ranks)
    draw_pp_diagram(cfg=pp_cfg(cfg))
  }

  if (requireNamespace("grid", quietly = TRUE) && piecepackr:::device_supports_unicode()) {

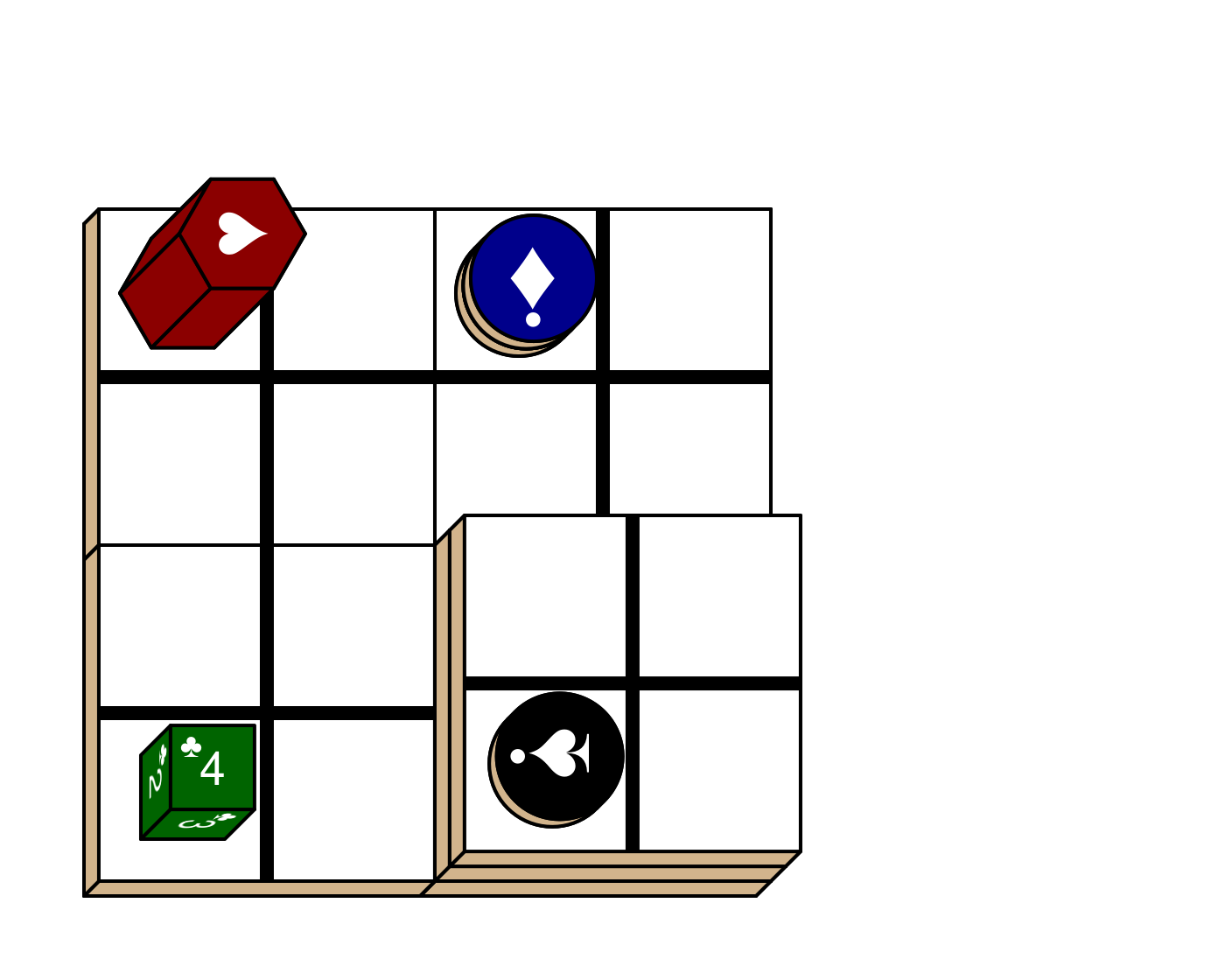

    # custom configuration, oblique projection
    grid::grid.newpage()
    cfg3d <- list(width.pawn=0.75, height.pawn=0.75, depth.pawn=1,
                       dm_text.pawn="", shape.pawn="convex6", invert_colors.pawn=TRUE,
                       edge_color.coin="tan", edge_color.tile="tan")
    cfg <- pp_cfg(c(cfg, cfg3d))
    draw_pp_diagram(cfg=pp_cfg(cfg), op_scale=0.5)
  }
