Piece Grob Functions

basicPieceGrob, pyramidTopGrob, and previewLayoutGrob are the default “grob” functions that grid.piece uses to create grid graphical grob objects. picturePieceGrobFn is a function that returns a “grob” function that imports graphics from files found in its directory argument.

basicPieceGrob(piece_side, suit, rank, cfg = pp_cfg())

picturePieceGrobFn(directory, filename_fn = find_pp_file)

pyramidTopGrob(piece_side, suit, rank, cfg = pp_cfg())

previewLayoutGrob(piece_side, suit, rank, cfg = pp_cfg())

Arguments

piece_side	A string with piece and side separated by a underscore e.g. "coin_face"
suit	Number of suit (starting from 1).
rank	Number of rank (starting from 1)
cfg	Piecepack configuration list or pp_cfg object.
directory	Directory that picturePieceGrobFn will look in for piece graphics.
filename_fn	Function that takes arguments directory, piece_side, suit, rank, and optionally cfg and returns the (full path) filename of the image that the function returned by picturePieceGrobFn should import.

Examples

 is_mac <- tolower(Sys.info()[["sysname"]]) == "darwin"
 if (require("grid") && capabilities("cairo") && !is_mac) {
    cfg <- pp_cfg(list(invert_colors=TRUE))

    pushViewport(viewport(width=unit(2, "in"), height=unit(2, "in")))
    grid.draw(basicPieceGrob("tile_face", suit=1, rank=3))
    popViewport()

    grid.newpage()
    pushViewport(viewport(width=unit(0.75, "in"), height=unit(0.75, "in")))

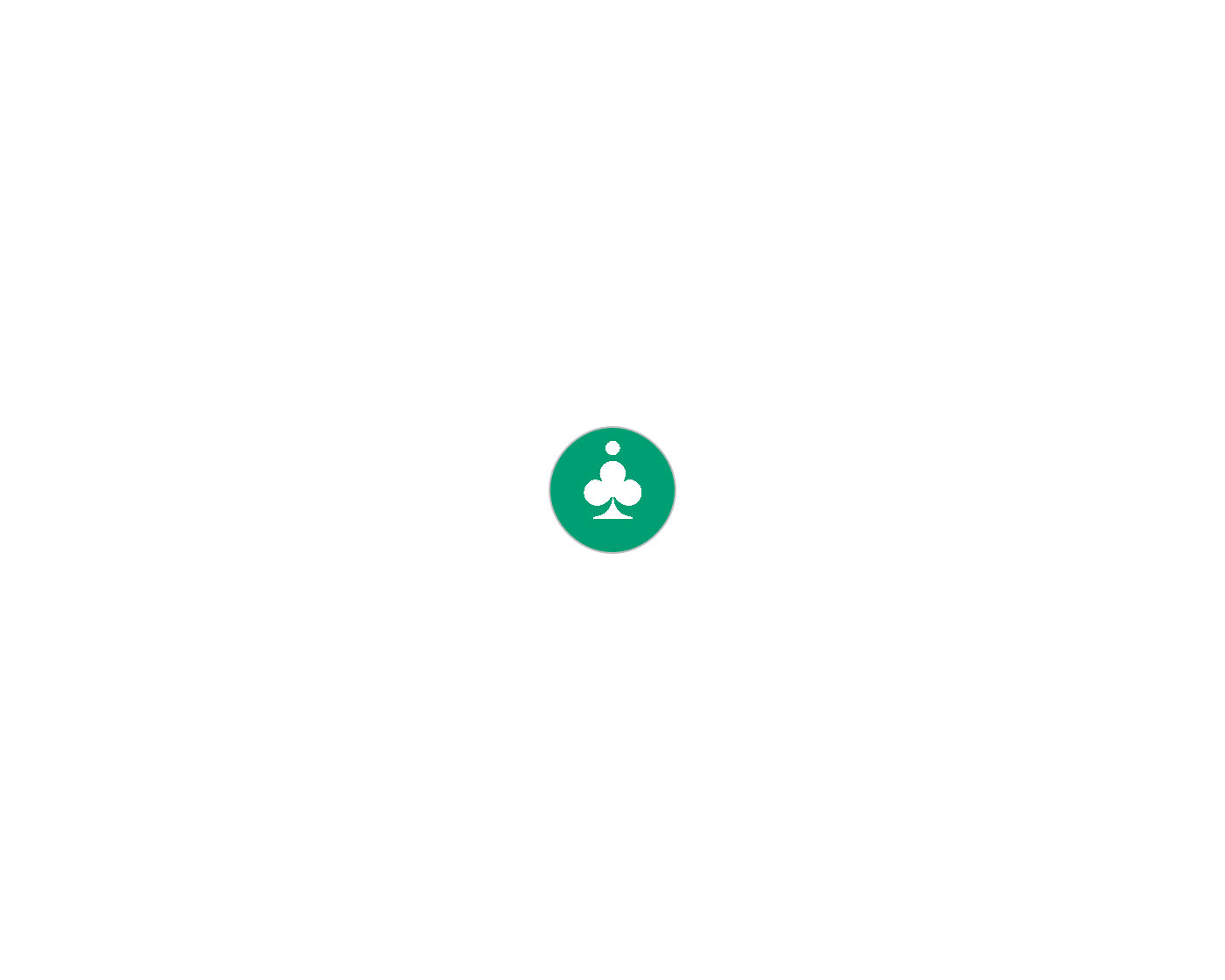

    grid.draw(basicPieceGrob("coin_back", suit=2, rank=0, cfg=cfg))
    popViewport()

    grid.newpage()
    pushViewport(viewport(width=unit(6, "in"), height=unit(6, "in")))
    grid.draw(previewLayoutGrob("preview_layout", suit=5, rank=0, cfg=cfg))
    popViewport()

    grid.newpage()
    pushViewport(viewport(width=unit(0.75, "in"), height=unit(0.75, "in")))
    grid.draw(pyramidTopGrob("pyramid_top", suit=3, rank=5))
    popViewport()

    # \donttest{
        directory <- tempdir()
        save_piece_images(cfg, directory=directory, format="svg", angle=0)
        cfg2 <- pp_cfg(list(grob_fn=picturePieceGrobFn(directory)))

        grid.newpage()
        pushViewport(viewport(width=unit(0.75, "in"), height=unit(0.75, "in")))
        grid.draw(pyramidTopGrob("pyramid_top", suit=3, rank=5, cfg=cfg2))
        popViewport()
    # }
 }
#> Loading required package: grid
